NC servo roll feeders, model NCF

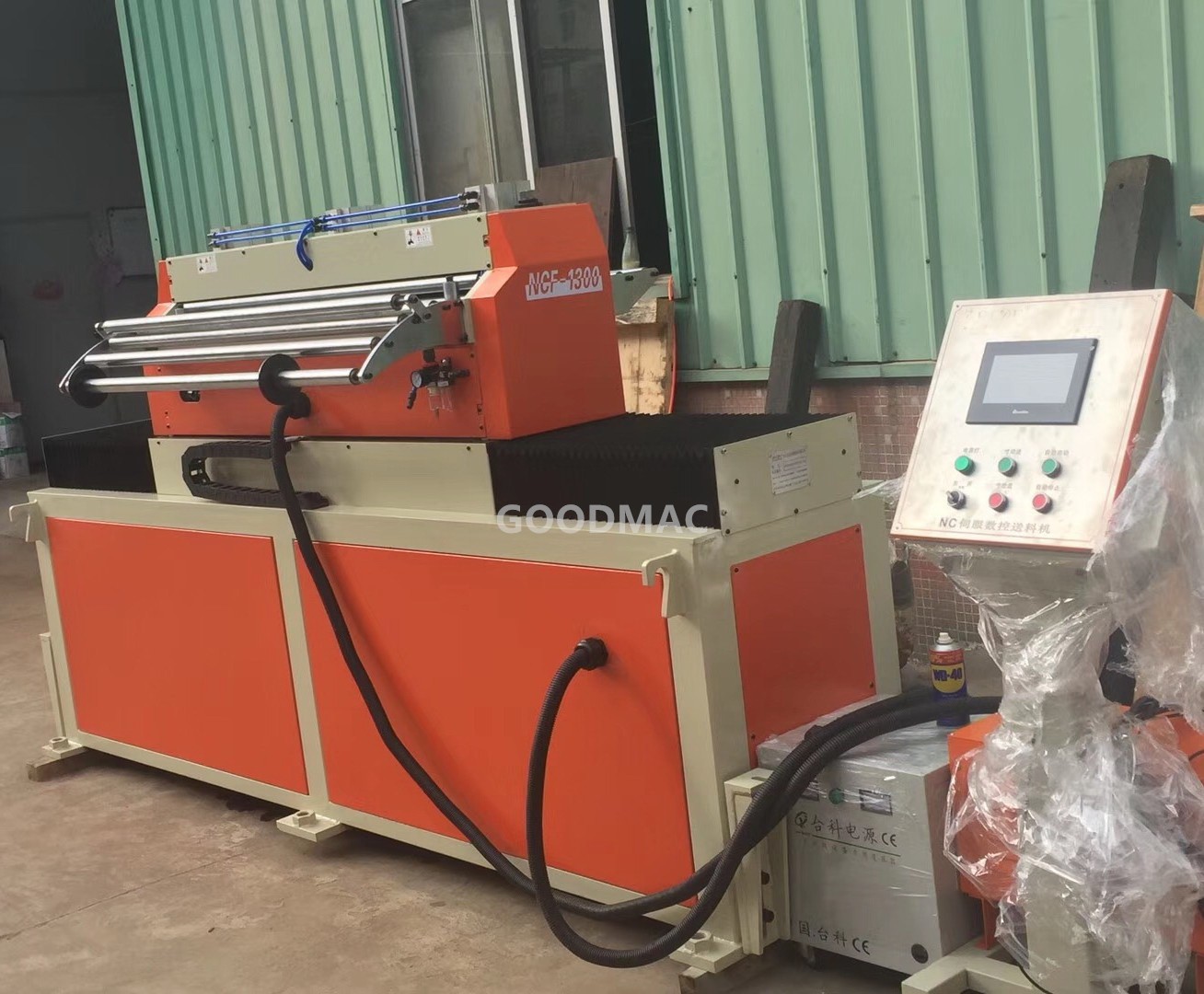

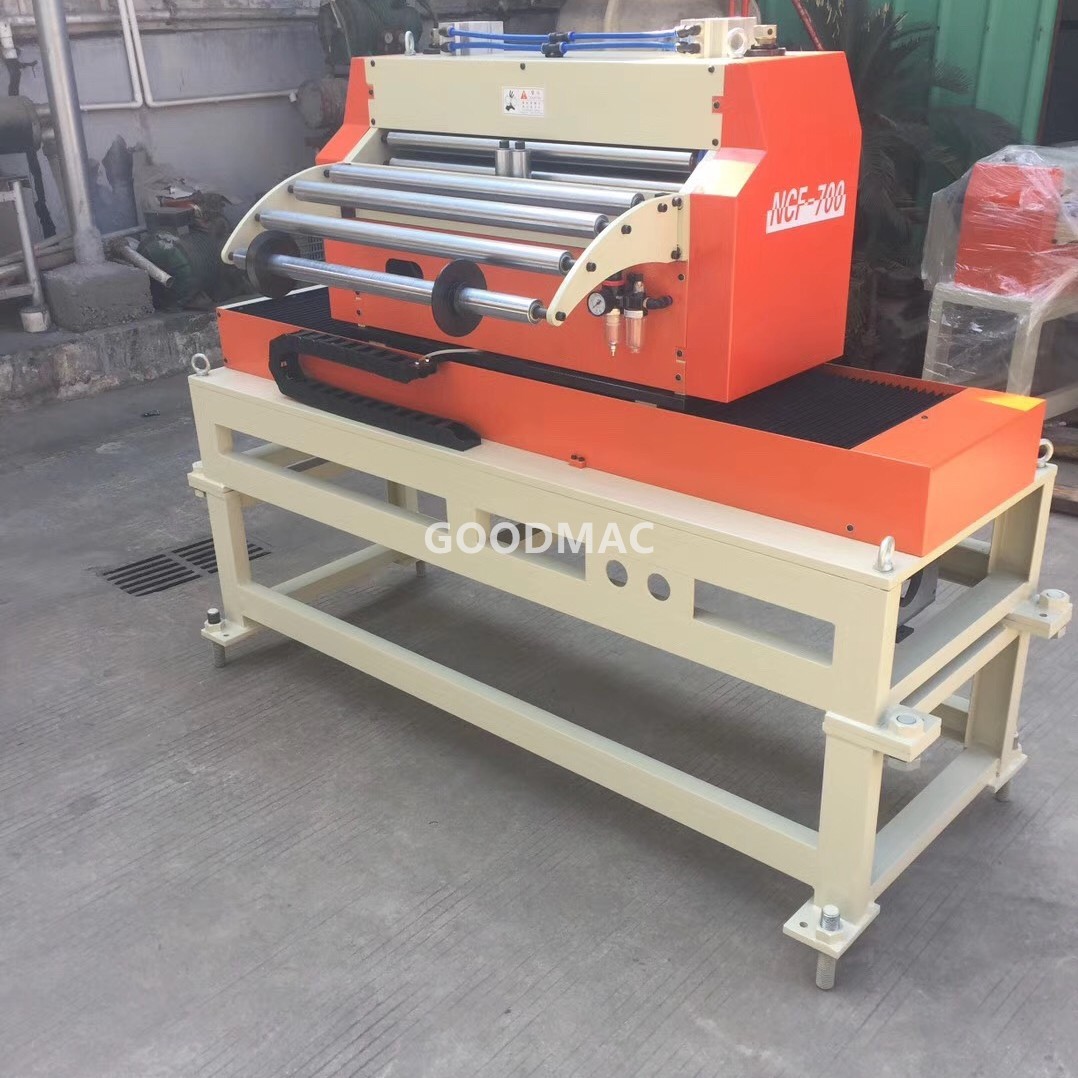

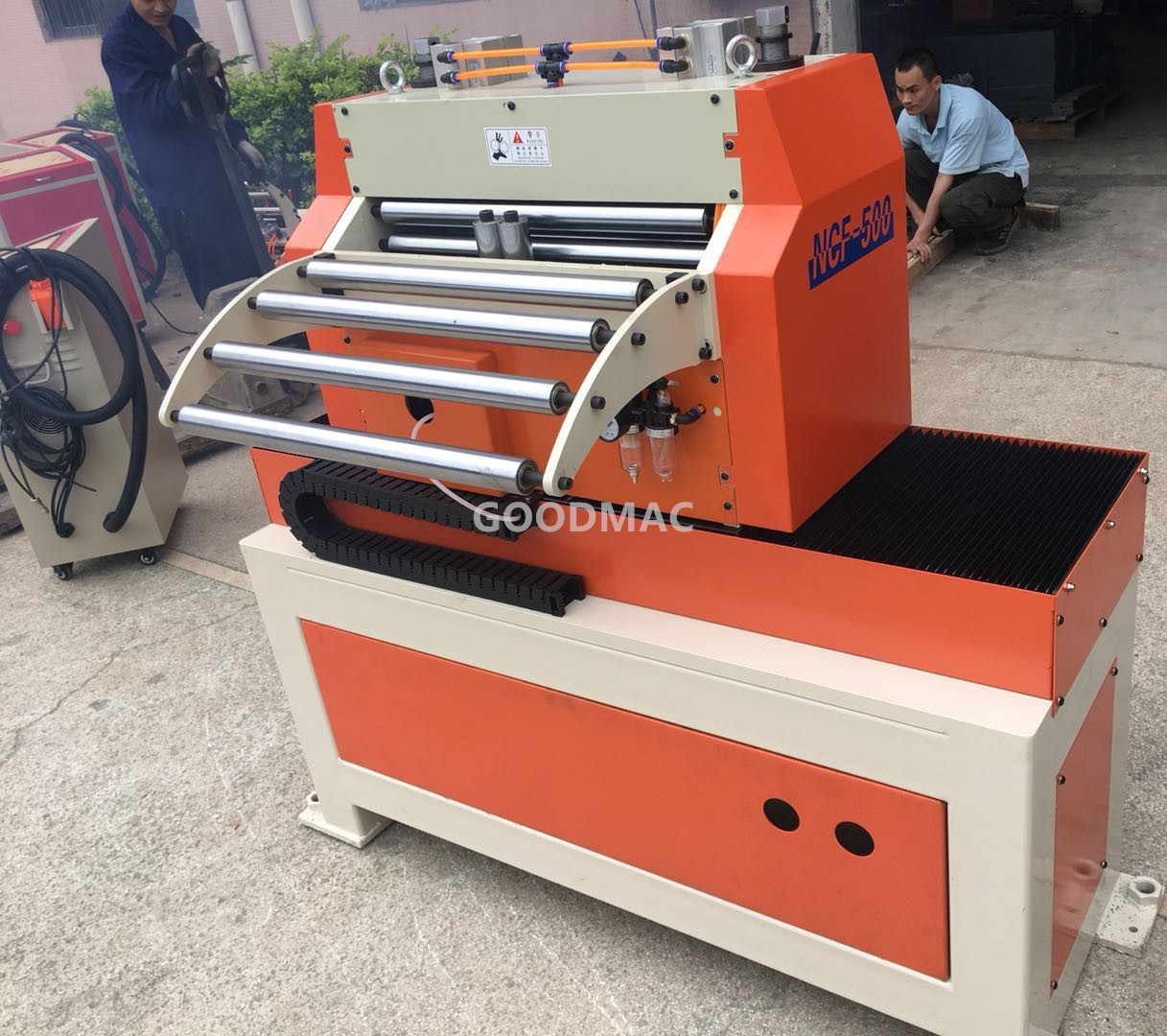

0.3-4.5mm Zigzag NC servo roll feeders, model NCF-200ZT, 300ZT, 400ZT, 500ZT, 600ZT, 800ZT
- Brand： GOODMAC
- Model： NCF-100ZT, NCF-200ZT, NCF-300ZT, NCF-400ZT, NCF-500ZT, NCF-600ZT, NCF-800ZT, NCF-1000ZT, NCF-1300ZT, NCF-1600ZT
- Advantage： 4 pieces of feeding rollers
- INQUIRY
Specification
| Model | NCF-100ZT | NCF-200ZT | NCF-300ZT | NCF-400ZT | NCF-500ZT | NCF-600ZT | NCF-800ZT | NCF-1000ZT | NCF-1300ZT | NCF-1600ZT |
| Metal sheet width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 800mm | 1000mm | 1300mm | 1600mm |
| Zigzag feeding distance | 50mm | 100mm | 150mm | 200mm | 250mm | 300mm | 400mm | 500mm | 650mm | 800mm |
| Metal sheet thickness | 0.3-4.5mm (Thick metal sheet) | |||||||||
| Feeding length per stroke | 0.1-9999.99mm | |||||||||
| Feeding accuracy | ±0.1mm | |||||||||
| Feeding speed | 0-20m/min | |||||||||
| Feeding roller | 2 pieces | |||||||||
| Releasing method | by pneumatic cylinder | |||||||||
| Front feeding | YASKAWA servo motor (JAPAN brand) | |||||||||
| Zigzag feeding | YASKAWA servo motor (JAPAN brand) | |||||||||
| PLC | MITSUBISHI (JAPAN brand) | |||||||||
| Human machine interface (HMI) | WEINVIEW (Taiwan brand) | |||||||||
| Other main components | other brands | |||||||||
| Electrical power | 380V, 3 Phase, 50HZ (or else) | |||||||||
