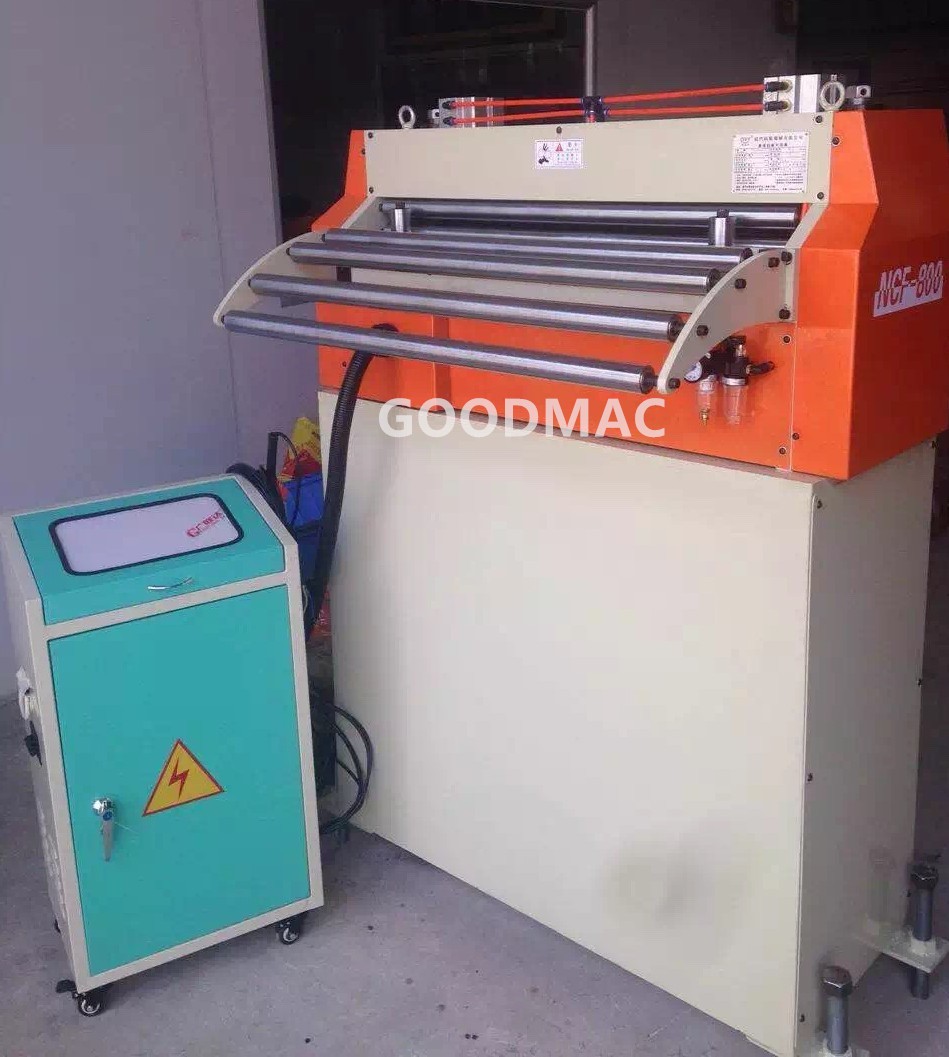

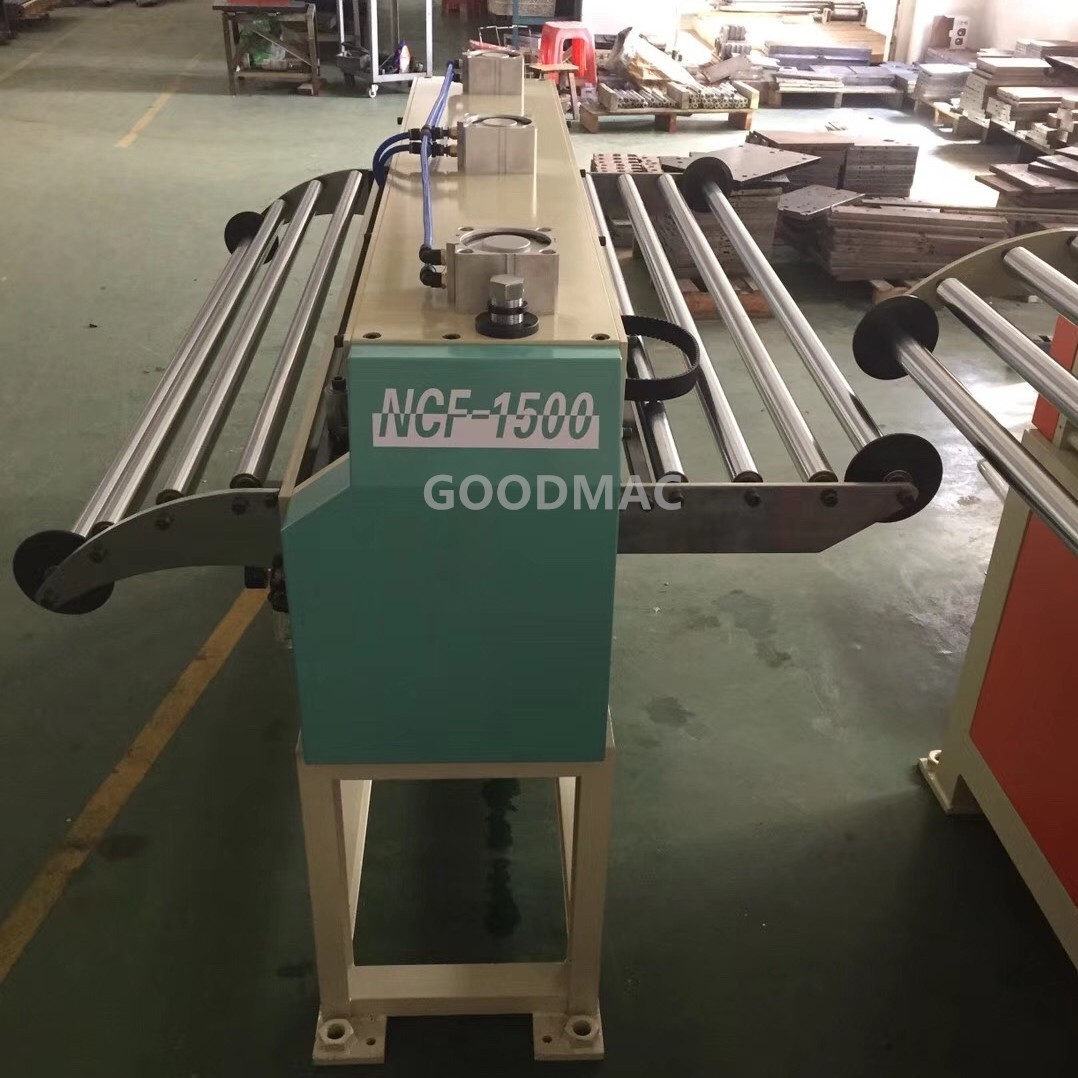

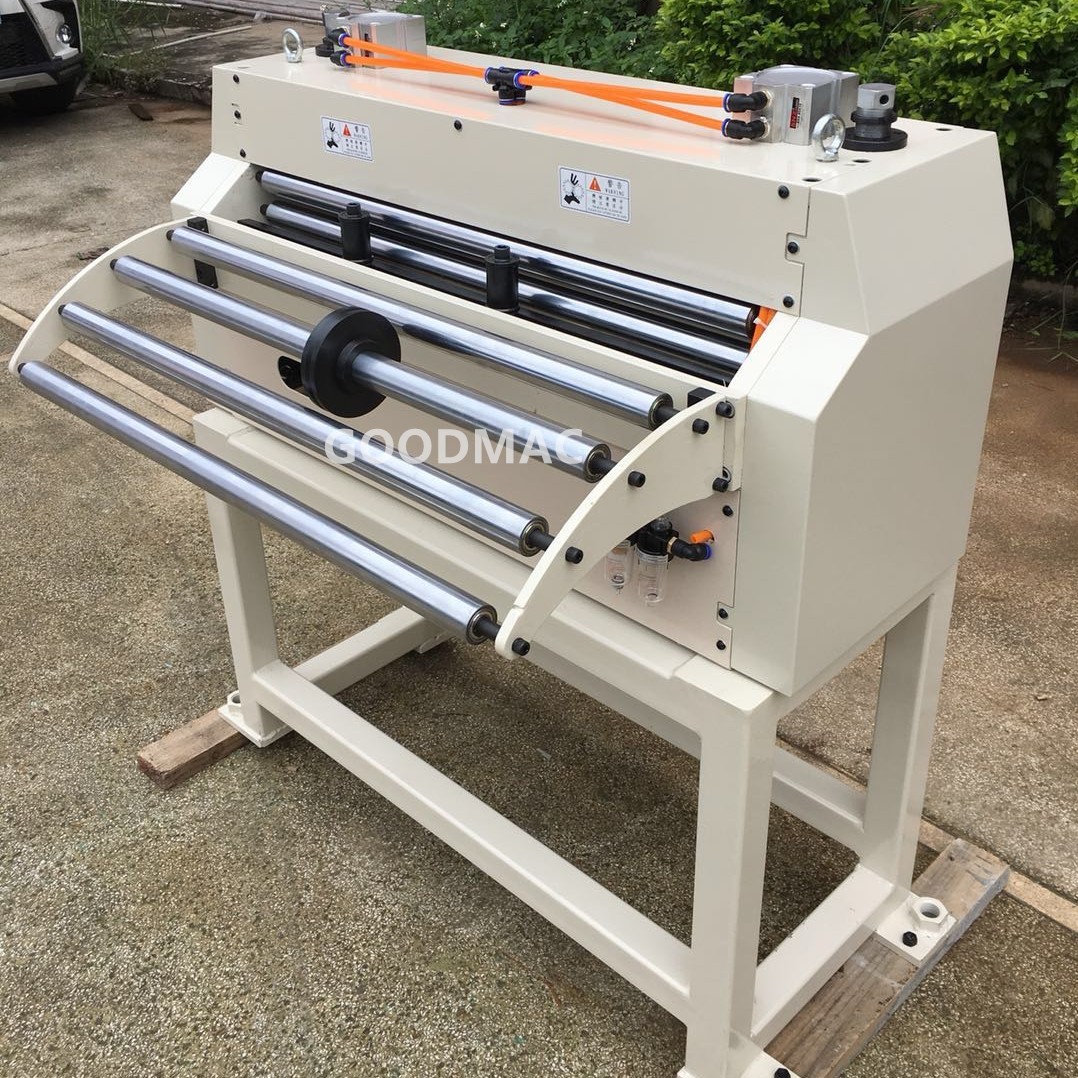

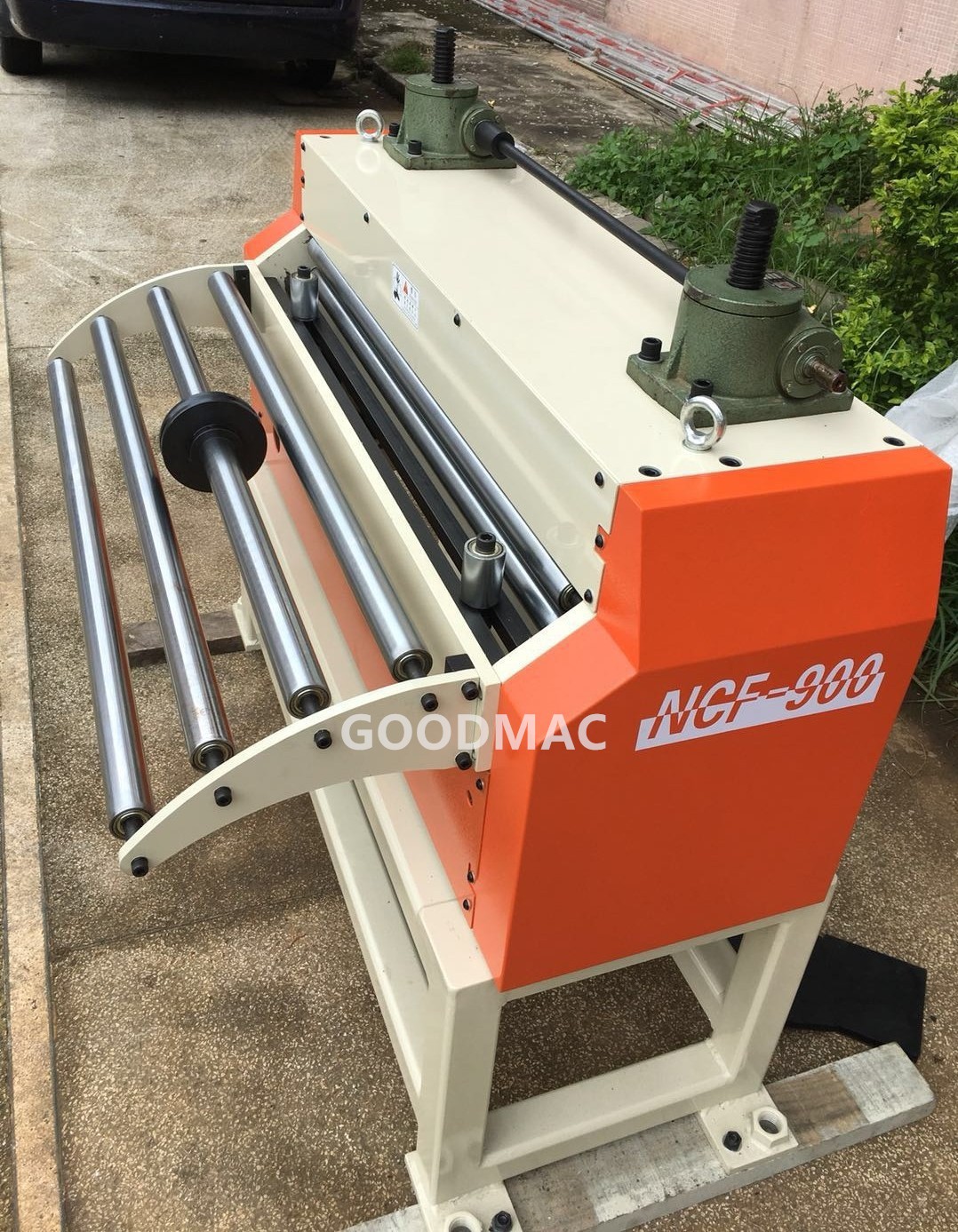

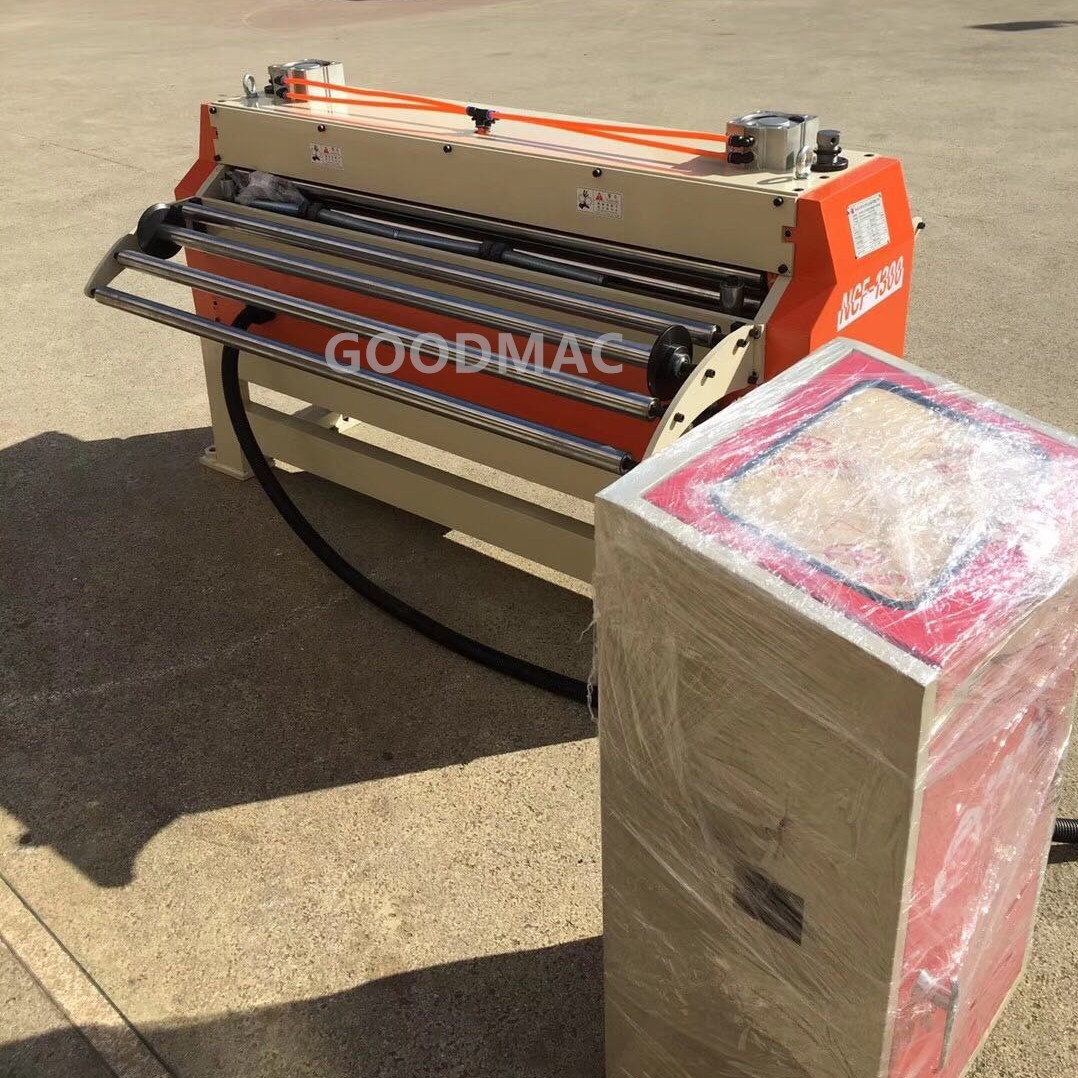

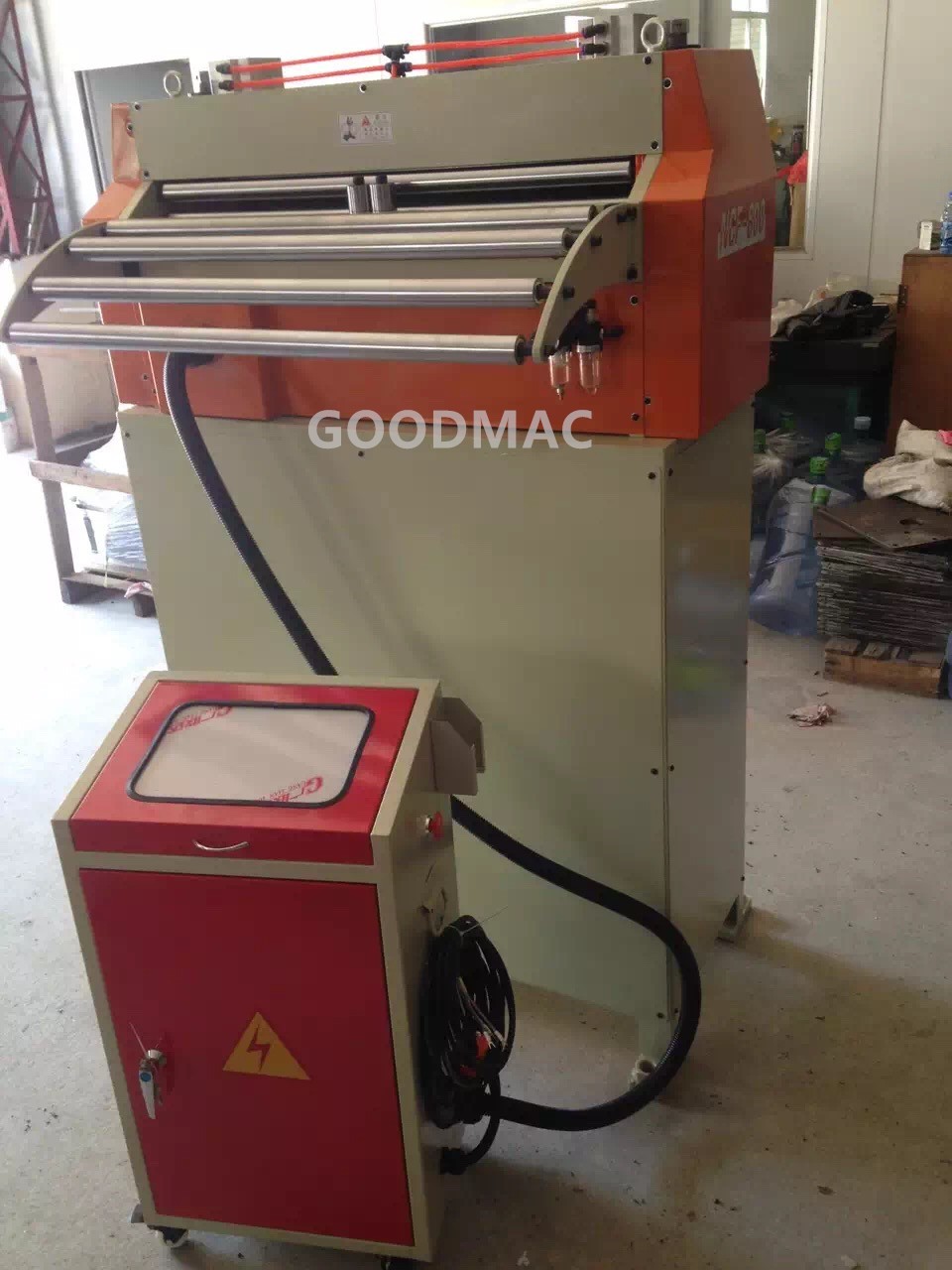

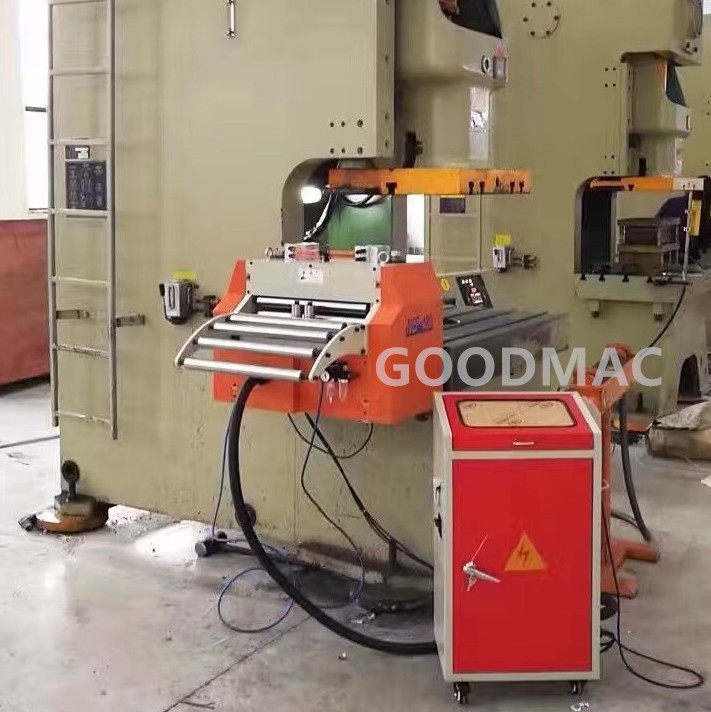

NC servo roll feeders, model NCF

  • 0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T
  • 0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T
  • 0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T
  • 0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T
  • 0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T
  • 0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T
  • 0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T
0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T 0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T 0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T 0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T 0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T 0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T 0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T

0.3-4.5mm NC servo roll feeders, model NCF-200T, 300T, 400T, 500T, 600T, 700T, 800T, 1000T, 1300T

  • Brand： GOODMAC
  • Model： NCF-100T, NCF-200T, NCF-300T, NCF-400T, NCF-500T, NCF-600T, NCF-700T, NCF-800T, NCF-1000T, NCF-1300T, NCF-1600T
  • Function： feed metal sheet
  • Feeding power： servo motor
  • Advantage： numerical control
  • HMI (touch screen)： input feeding length numbers etc
  • PLC ： MITSUBISHI
  • Releasing material： pneumatic cylinder
  • Easy to use： yes
  • INQUIRY


Specification

ModelNCF-100TNCF-200TNCF-300TNCF-400TNCF-500TNCF-600TNCF-700TNCF-800TNCF-1000TNCF-1300TNCF-1600T
Metal sheet width100mm200mm300mm400mm 500mm600mm700mm800mm1000mm1300mm1600mm
Metal sheet thickness0.3-4.5mm (Thick metal sheet)
Feeding capacity, thickness × width (mm）                     0.3-2.2100200300400 500600700800100013001600
3.280160240320 400460520560580600650
4.550120150220250280300320350360380
Servo motor power (KW)1.31.31.31.31.82.92.94.45.57.511
Feeding length per stroke 0.1-9999.99mm
Feeding length accuracy±0.1mm
Feeding speed0-20m/min
Feeding roller quantity2 pieces
Releasing method for rollerby pneumatic cylinder
Servo motor and driveYASKAWA (JAPAN brand)
PLCMITSUBISHI (JAPAN brand)
Human machine interface (HMI)WEINVIEW (Taiwan brand)
Other main componentsother brands
Electrical power380V, 3 Phase, 50HZ (or else)
