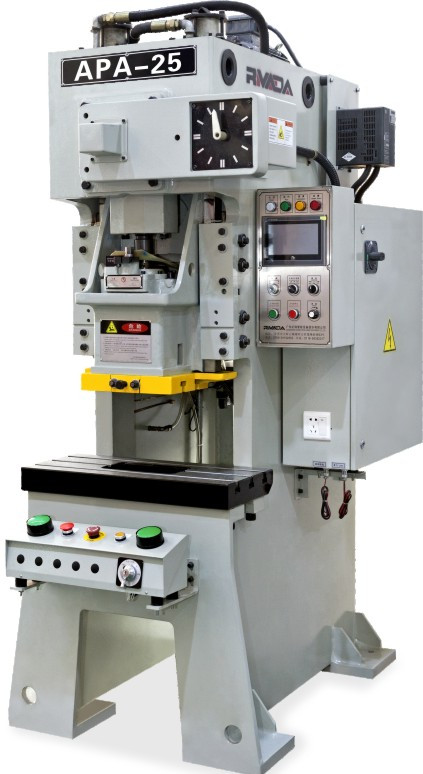

| Model | APA-25 | ||
| Type | V | H | S |
| Pressing capacity | 25 Ton | ||
| Rated tonnage point | 3.2mm | 1.6mm | 3.2mm |
| Stroke per minute (variable) | 60-140 | 130-200 | 60-120 |
| Stroke per minute (fixed) | N/A | 110 | |
| Slide stroke | 70mm | 30mm | 80mm |
| Die height maximum | 195mm | 215mm | 195mm |
| Slide adjustment | 50 mm | ||
| Slide area | 300x230x50mm | ||
| Bolster area | 680x300x70mm | 680x300x65mm | |
| Shank hole | Φ38.1mm | ||
| Main motor | VS3.7x4 (KW.p) | ||
| Slide adjusting | manual adjusting | ||
| Pneumatic presure | 6KG/cm2 | ||
| Precision | GB/JIS class 1 | ||
| Dimension | 1280x850x2200mm | ||
| Weight | 2.1 Ton | ||
| Die cushion capacity | N/A | ||
| Die cushion capacity | N/A | ||
| Die cushion area | N/A | ||
