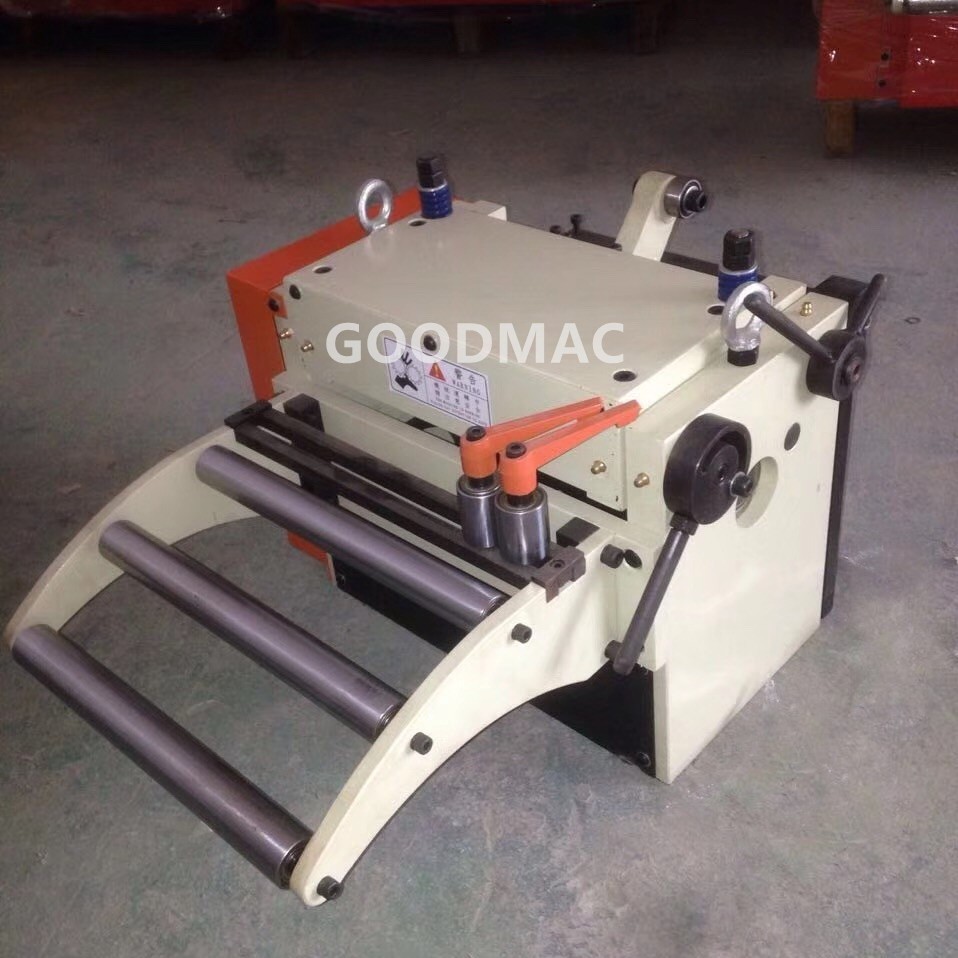

NC servo roll feeders, model NCF
0.2-2.5mm NC servo roll feeders, model NCF-200M, 300M, 400M (mechanical releasing)
- Brand： GOODMAC
- Model： NCF-100M, NCF-200M, NCF-300M, NCF-400M
- Function： feed metal sheet
- Feeding power： servo motor
- Advantage： high speed
- HMI (touch screen)： input feeding length numbers etc
- Releasing material： by mechanical rod
- Easy to use： yes
- INQUIRY
Specification
| Model | NCF-200M | NCF-300M | NCF-400M |
| Metal sheet width | 200mm | 300mm | 400mm |
| Metal sheet thickness | 0.2-2.5mm | ||
| Feeding length per stroke | 0.1-9999.99 mm | ||
| Feeding length accuracy | ±0.1mm | ||
| Feeding speed | 0-20m/min | ||
| Feeding rollers | 2 pieces | ||
| Roller releasing method | Mechanical rod (high speed) | ||
| Servo motor and drive | YASKAWA (JAPAN brand) | ||
| PLC | MITSUBISHI (JAPAN brand) | ||
| Human machine interface (HMI) | WEINVIEW (Taiwan brand) | ||
| Other main components | other brands | ||
| Motor power | 0.85KW | 0.85KW | 1.3KW |
| Electrical power | 380V, 3 phase, 50HZ (or else) | ||
