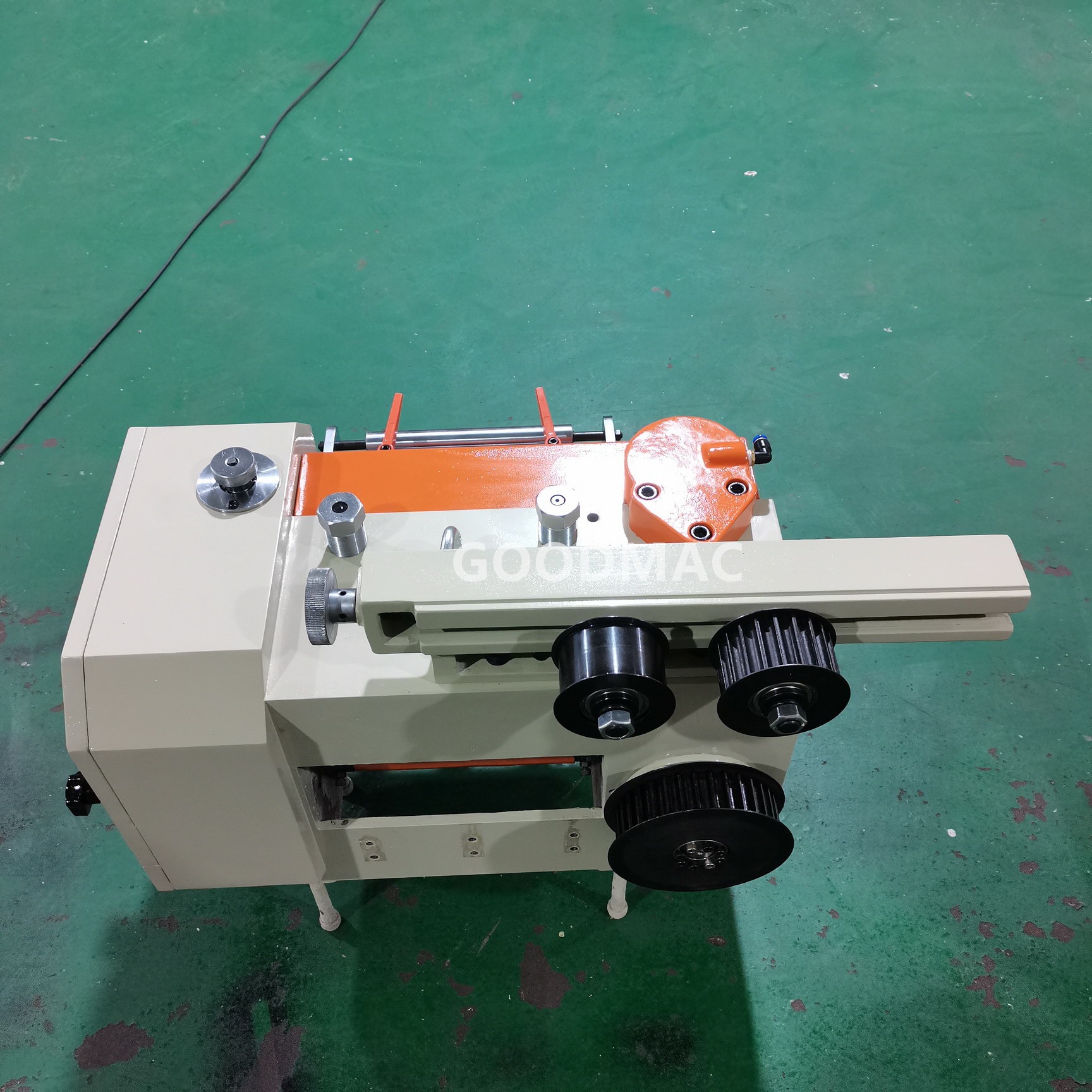

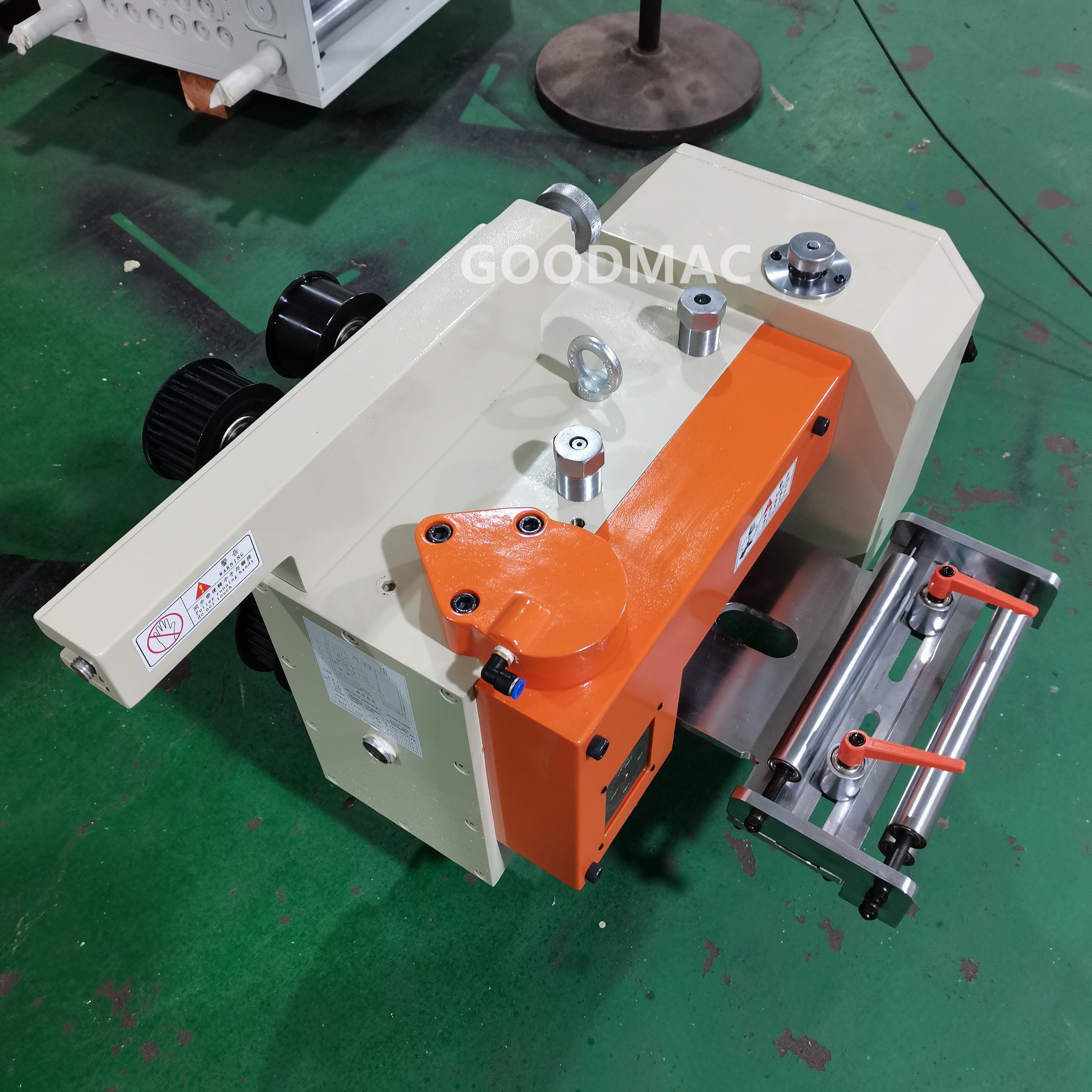

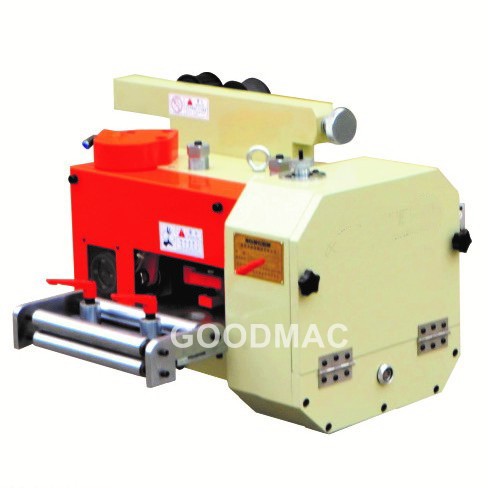

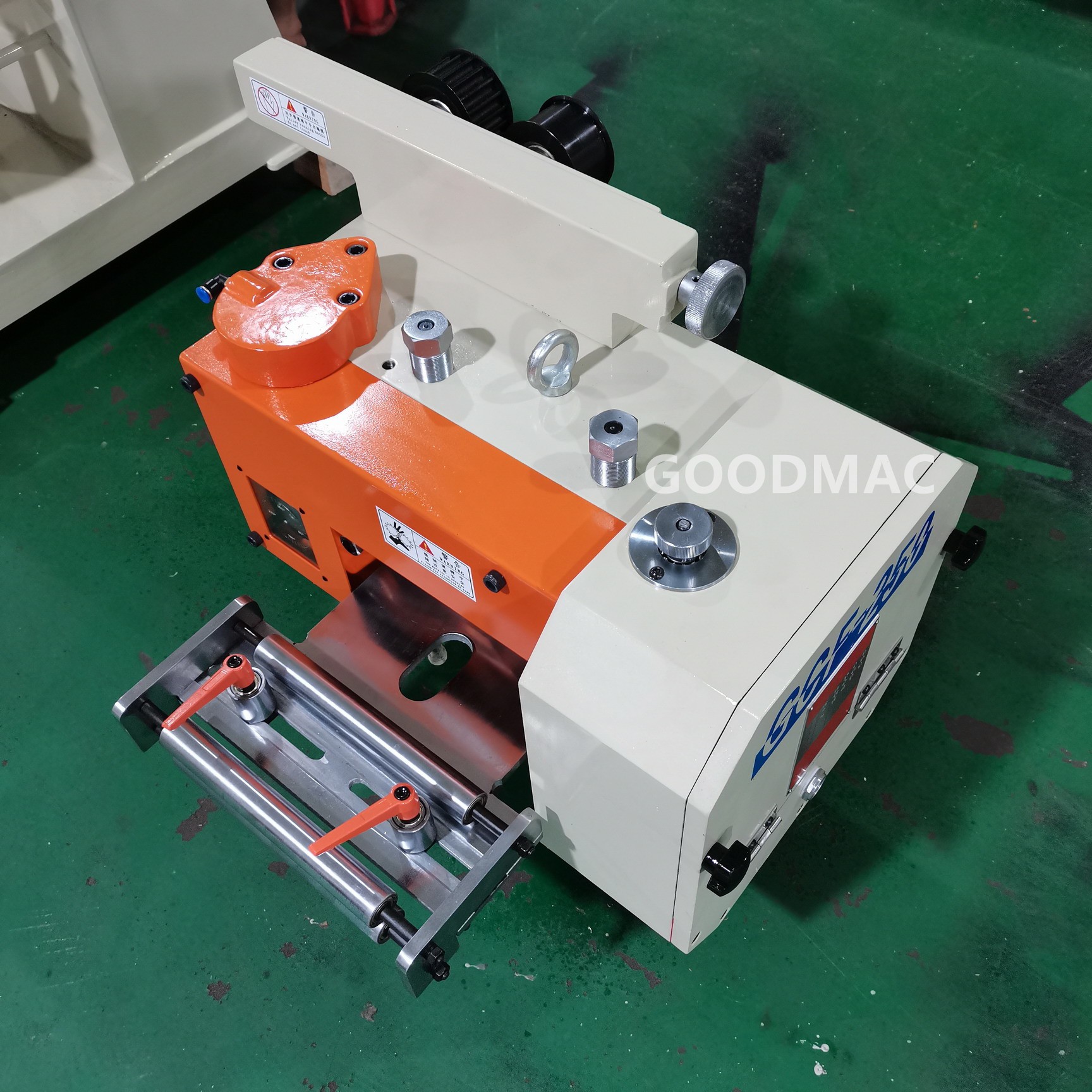

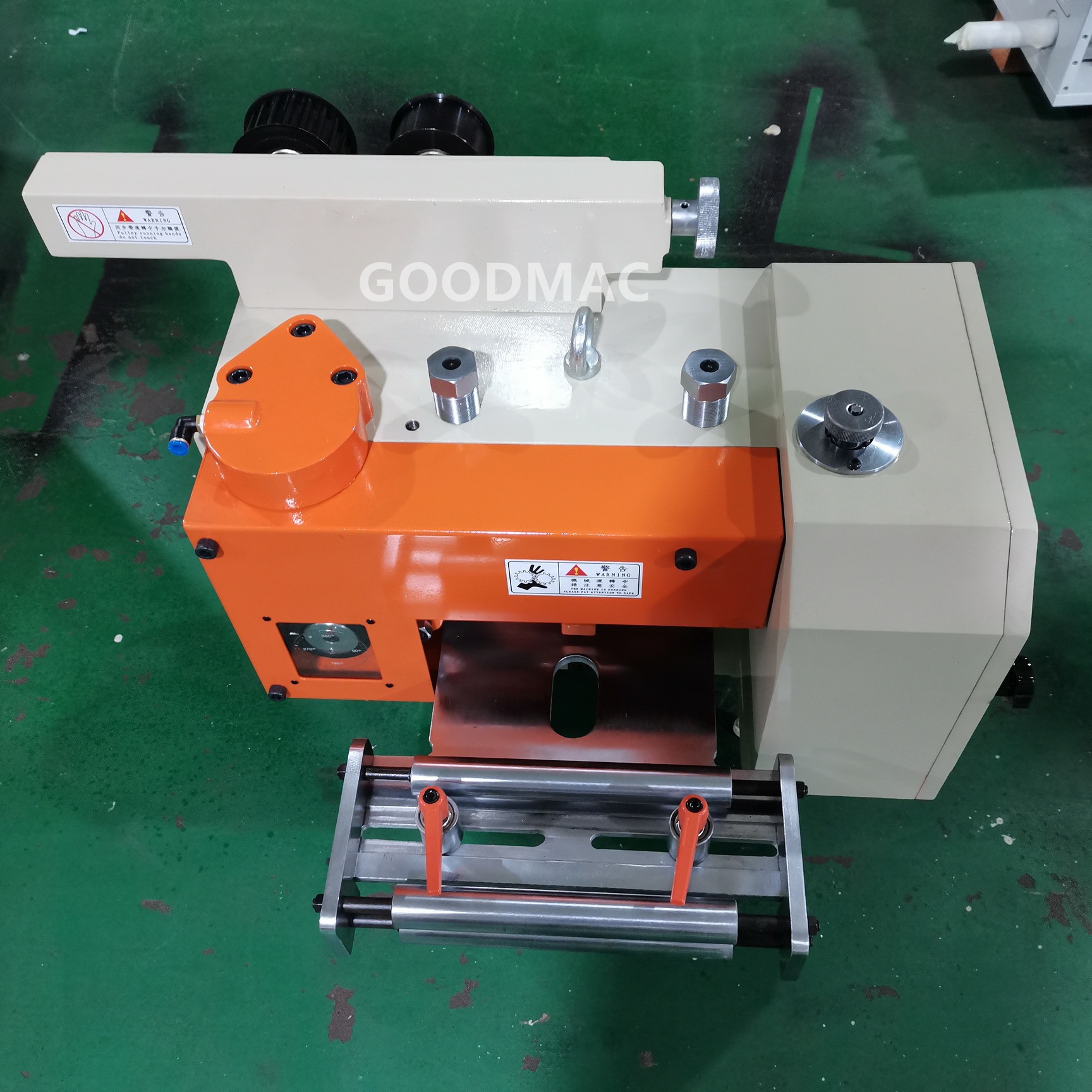

High speed gear feeders, model GCF

  • 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500
  • 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500
  • 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500
  • 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500
  • 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500
  • 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500
  • 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500
  • 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500
0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500 0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500

0.15-1.0mm high speed gear geeders, model GCF-150, GCF-200, GCF-250, 300, 400, 500

  • Brand： GOODMAC

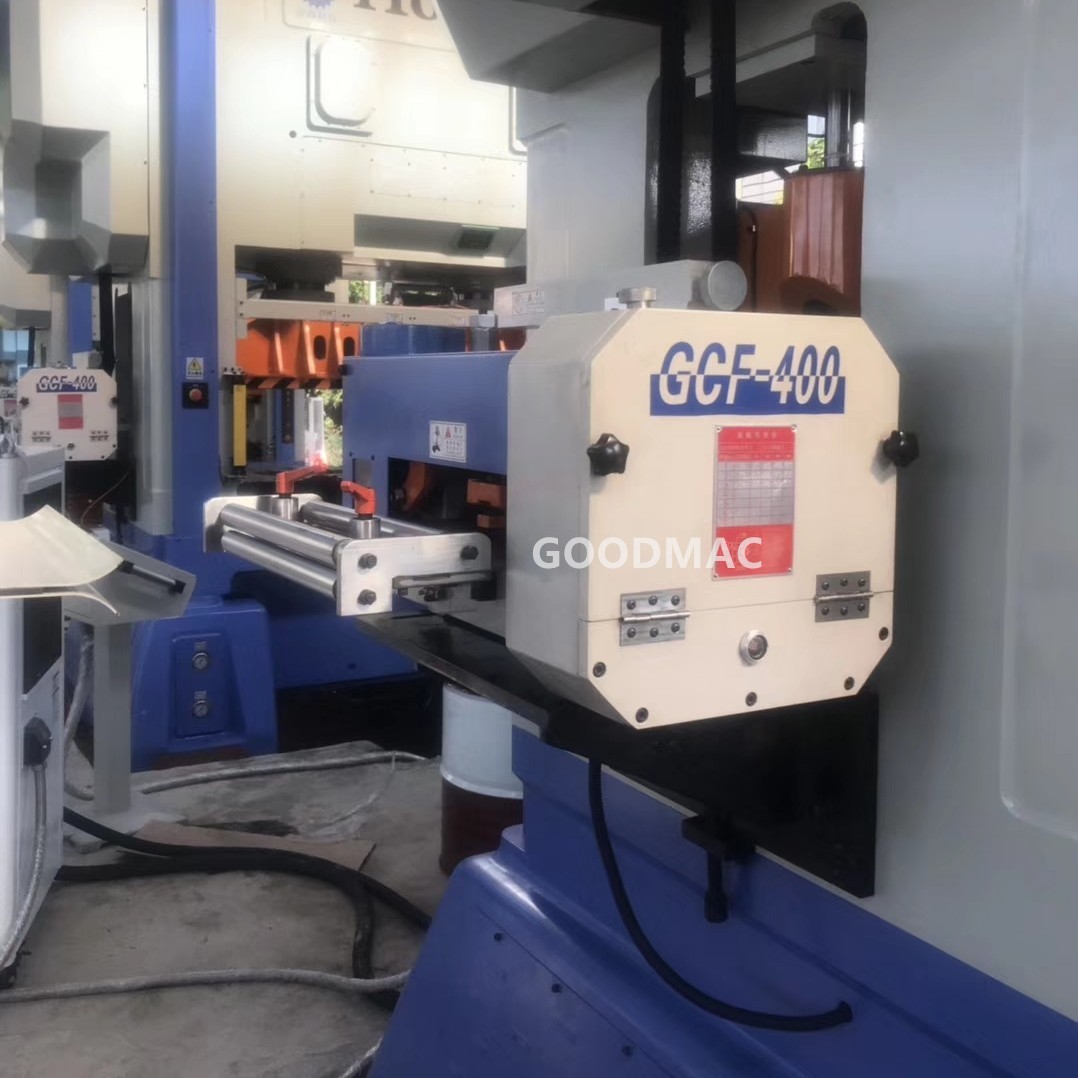

  • Model： GCF-150, GCF-200, GCF-250, GCF-300, GCF-400, GCF-500
  • Function： feed sheet metal strip to press machine
  • Advantage： high speed stroke, up to 500SPM

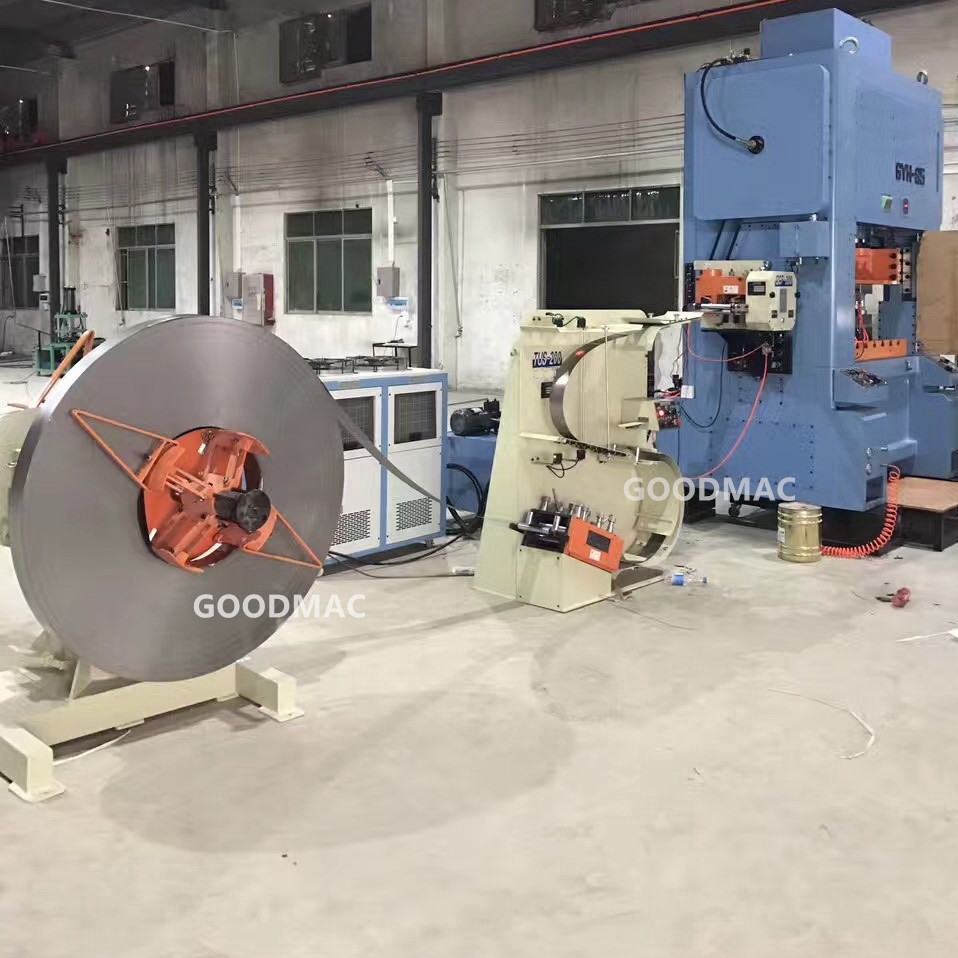

  • Application： high speed press machine
  • Feeding accuracy： very high
  • Feeding power： press machine’s output shaft
  • Feeding direction： from left to right
  • INQUIRY


Specification

ModelGCF-150GCF-200GCF-250GCF-300GCF-400GCF-500
Metal sheet width150mm200mm250mm300mm400mm500mm
Metal sheet thickness0.15-1.0mm
Feeding length per stroke9-300mm
Feeding speed maximum50m/min
Feeding angle180°
Releasing angle135°-190°  (adjustable)
Feeding directionfrom left to right
Full driveupper roller and lowe roller
Feeding roller diameter70mm80mm90mm
Divider80#100#110#
Divider brandTANZI

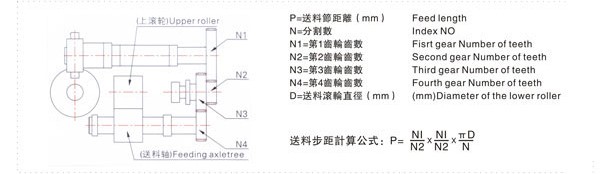

Gears provided for freefor three feeding pitches
