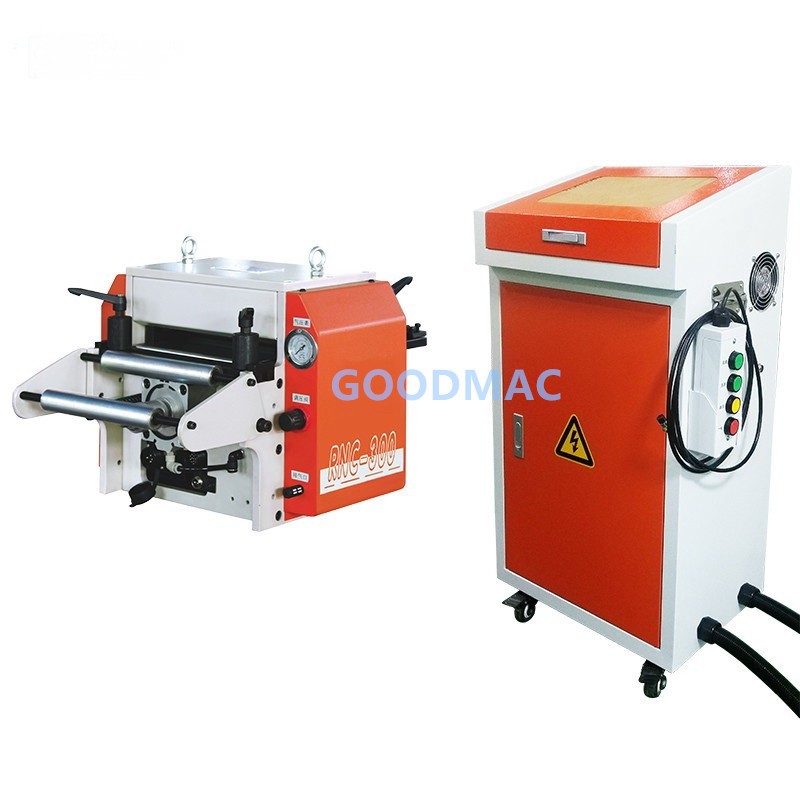

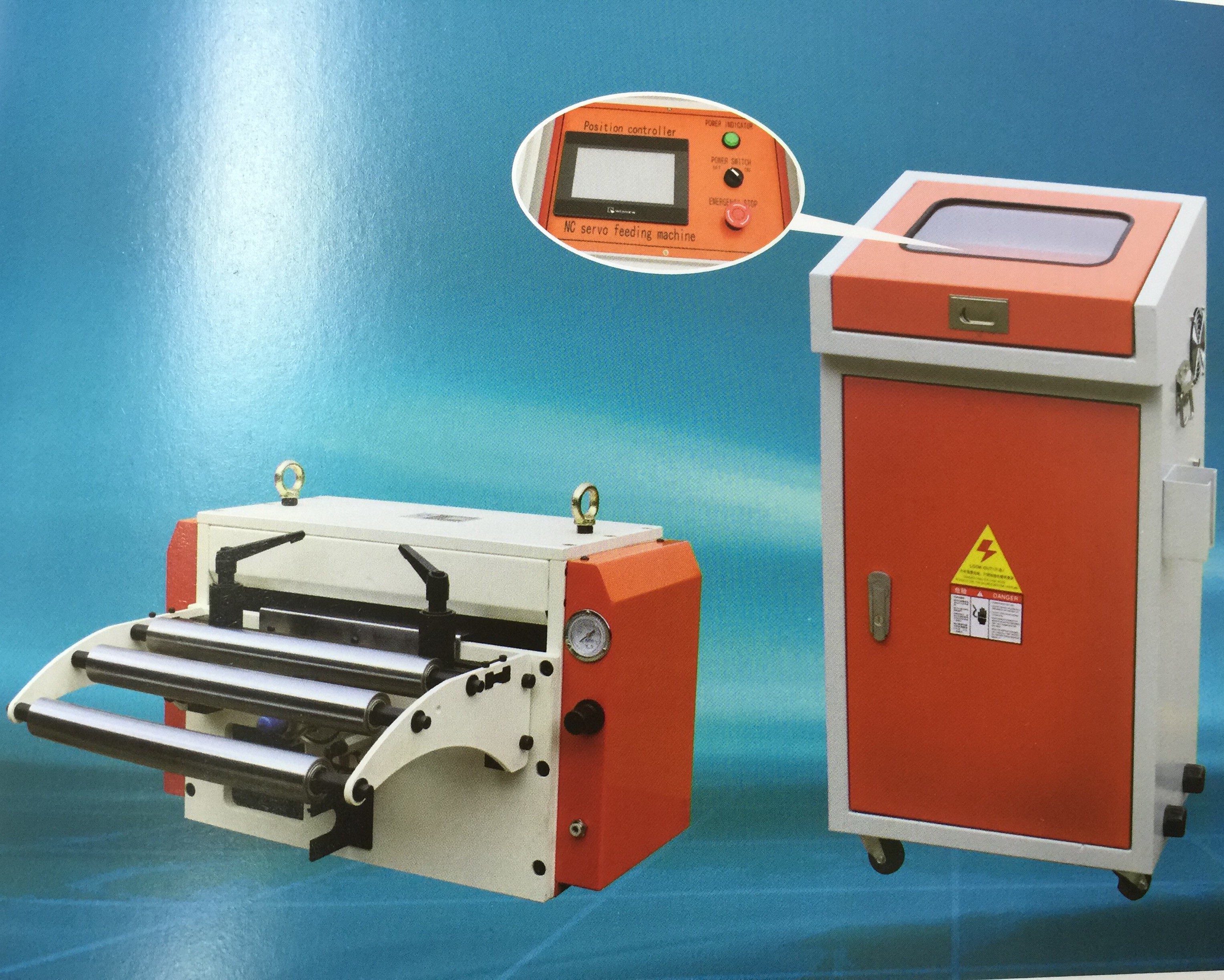

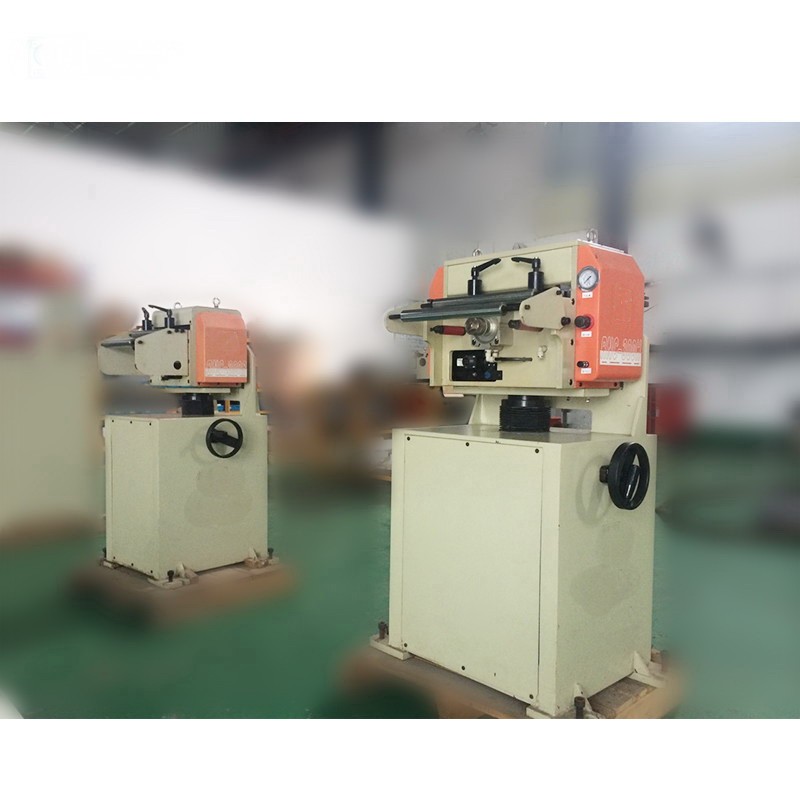

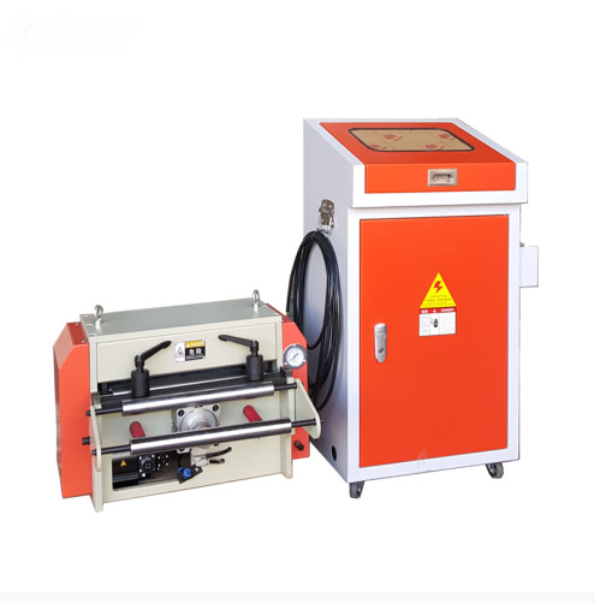

NC servo roll feeders, model RNC

  • 0.2-3.2mm NC servo roll feeders, model RNC-200, 300, 400, 500, 600, 800, 1000, 1300
  • 0.2-3.2mm NC servo roll feeders, model RNC-200, 300, 400, 500, 600, 800, 1000, 1300
  • 0.2-3.2mm NC servo roll feeders, model RNC-200, 300, 400, 500, 600, 800, 1000, 1300
  • 0.2-3.2mm NC servo roll feeders, model RNC-200, 300, 400, 500, 600, 800, 1000, 1300
  • 0.2-3.2mm NC servo roll feeders, model RNC-200, 300, 400, 500, 600, 800, 1000, 1300
0.2-3.2mm NC servo roll feeders, model RNC-200, 300, 400, 500, 600, 800, 1000, 1300 0.2-3.2mm NC servo roll feeders, model RNC-200, 300, 400, 500, 600, 800, 1000, 1300 0.2-3.2mm NC servo roll feeders, model RNC-200, 300, 400, 500, 600, 800, 1000, 1300 0.2-3.2mm NC servo roll feeders, model RNC-200, 300, 400, 500, 600, 800, 1000, 1300 0.2-3.2mm NC servo roll feeders, model RNC-200, 300, 400, 500, 600, 800, 1000, 1300

0.2-3.2mm NC servo roll feeders, model RNC-200, 300, 400, 500, 600, 800, 1000, 1300


Specification

ModelRNC-200RNC-300RNC-400RNC-500RNC-600RNC-800RNC-1000RNC-1300
Metal sheet width200mm300mm400mm 500mm600mm800mm1000mm1300mm
Metal sheet thickness0.2-3.2mm
Feeding capacity,                  width × thickness (mm)200×2.3,   80×3.2300×2.0,   80×3.2400×2.0,   80×3.2500×1.6,   200×3.2600×1.6,   150×3.2800×1.6,   150×3.21000×1.5,   110×3.21300×1.2,   110×3.2
Feeding length per stroke0.1-9999.99mm
Feeding length accuracy±0.1mm
Feeding speed0-20m/min
Feeding height adjustment±50mm
Roller releasing methodby pneumatic cylinder
Servo motor and driveYASKAWA (JAPAN brand)
PLCMITSUBISHI (JAPAN brand)
Human machine interface (HMI)WEINVIEW (Taiwan brand)
Other main componentsother brands
Electrical power380V, 3 Phase, 50HZ (or else)
