NC servo roll feeders, model NCF

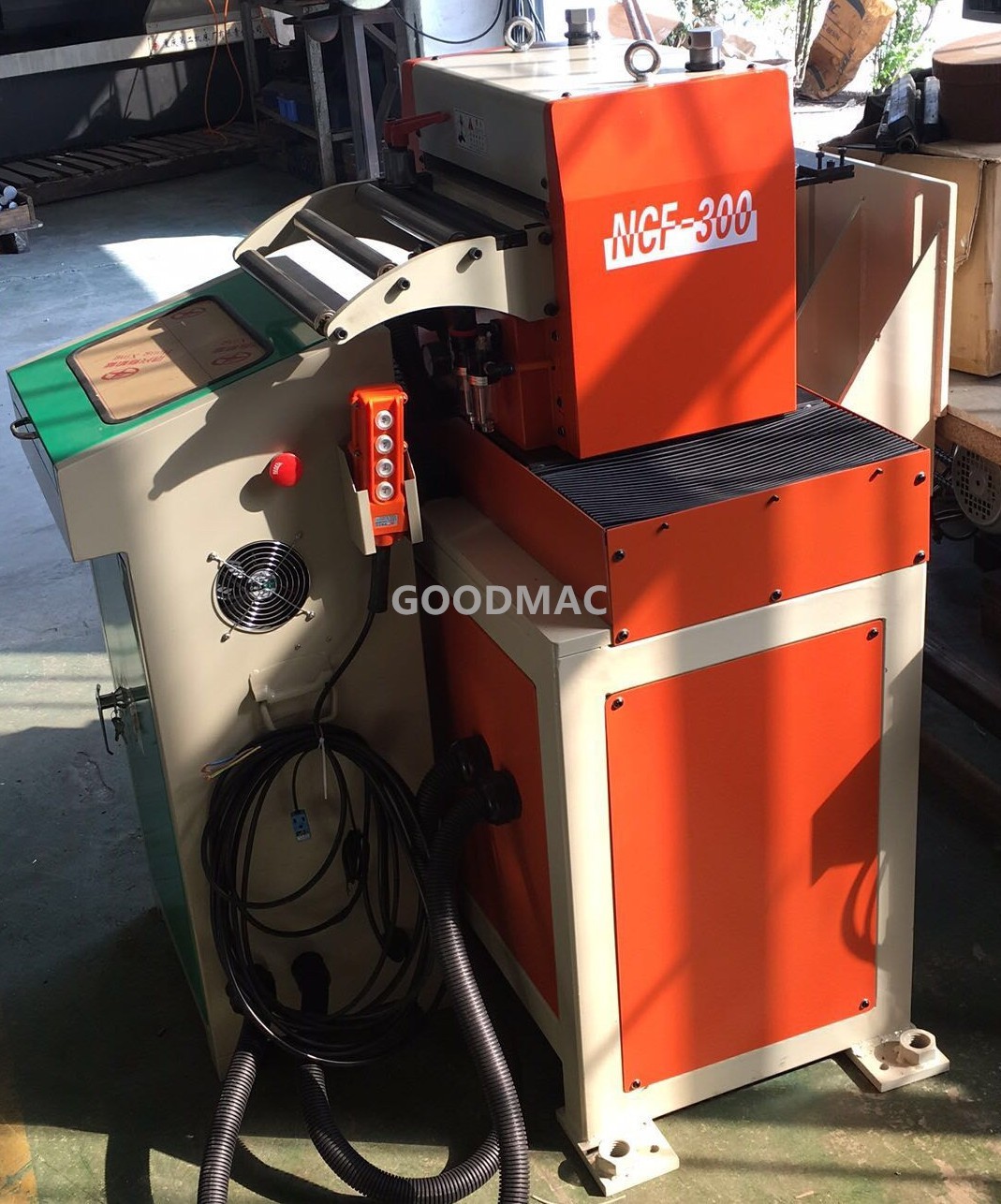

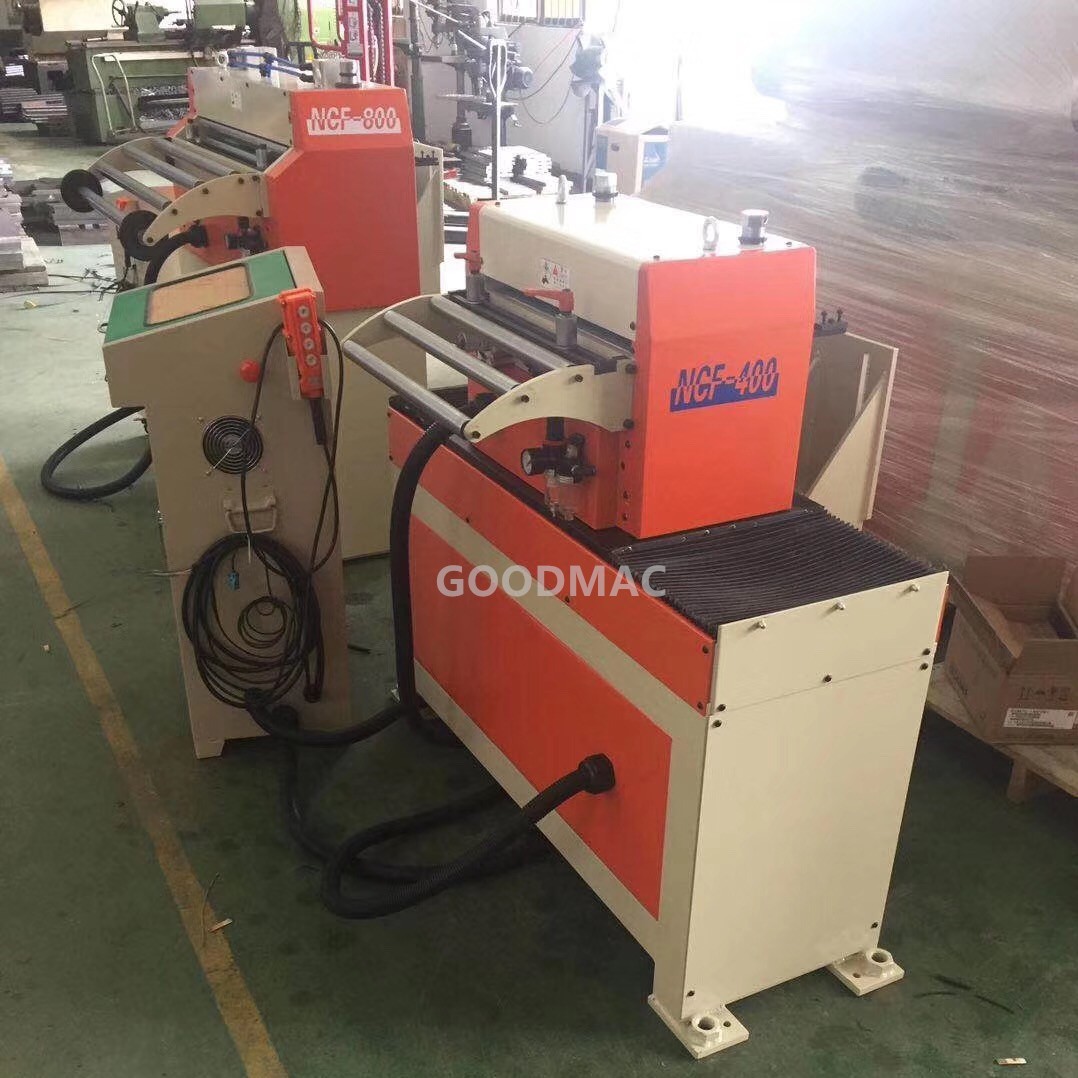

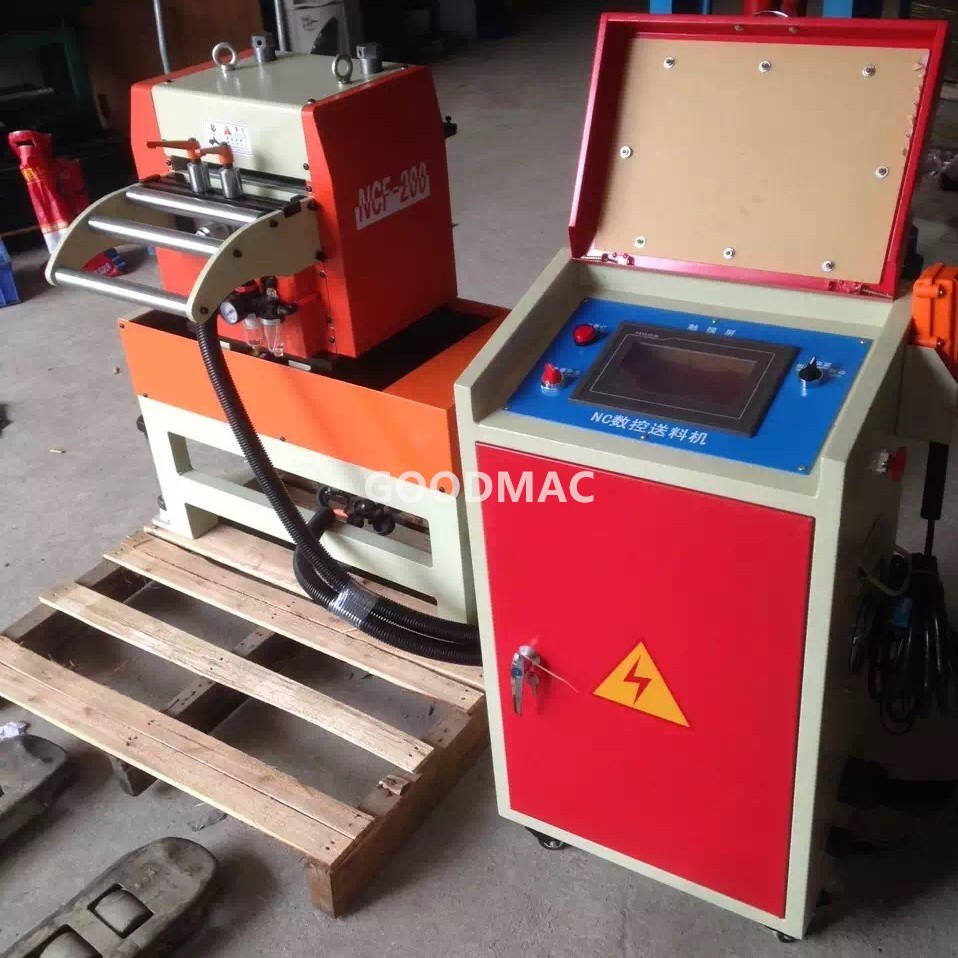

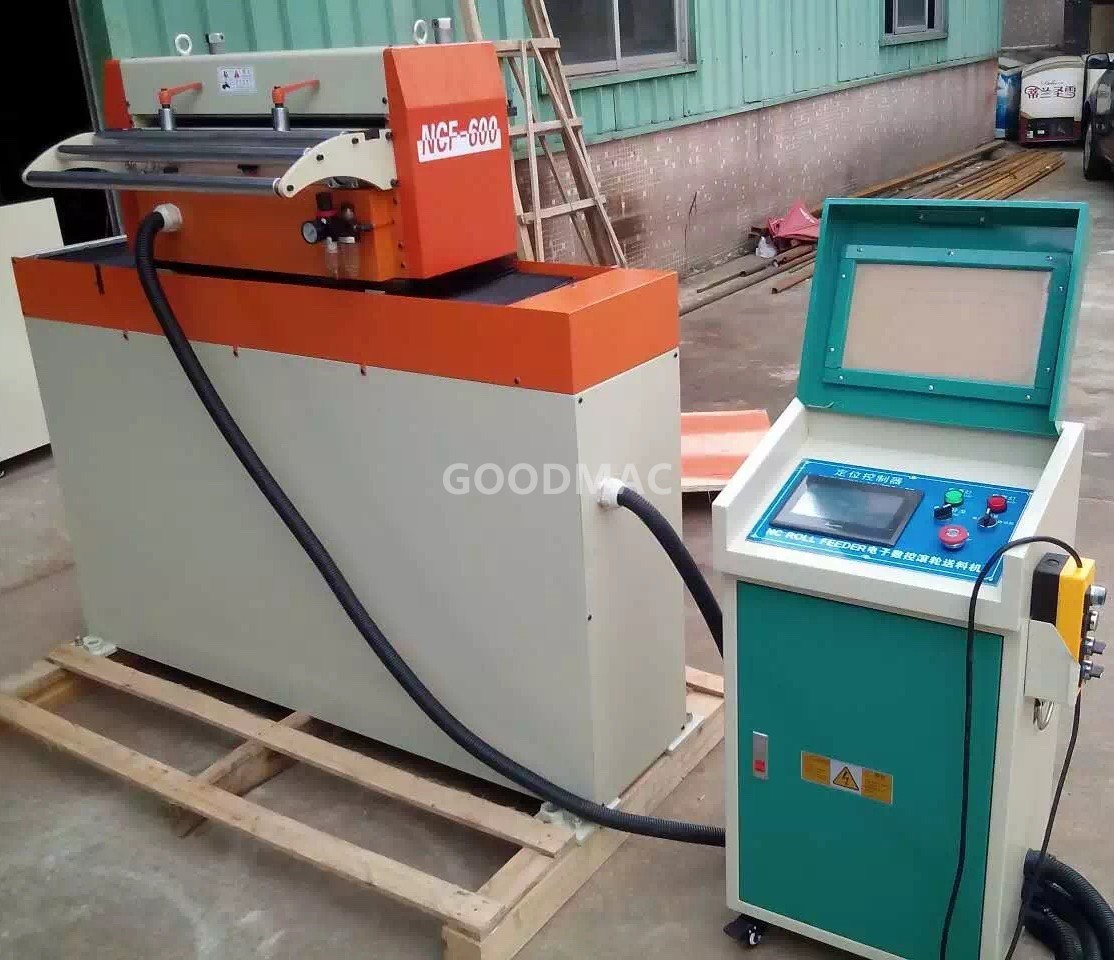

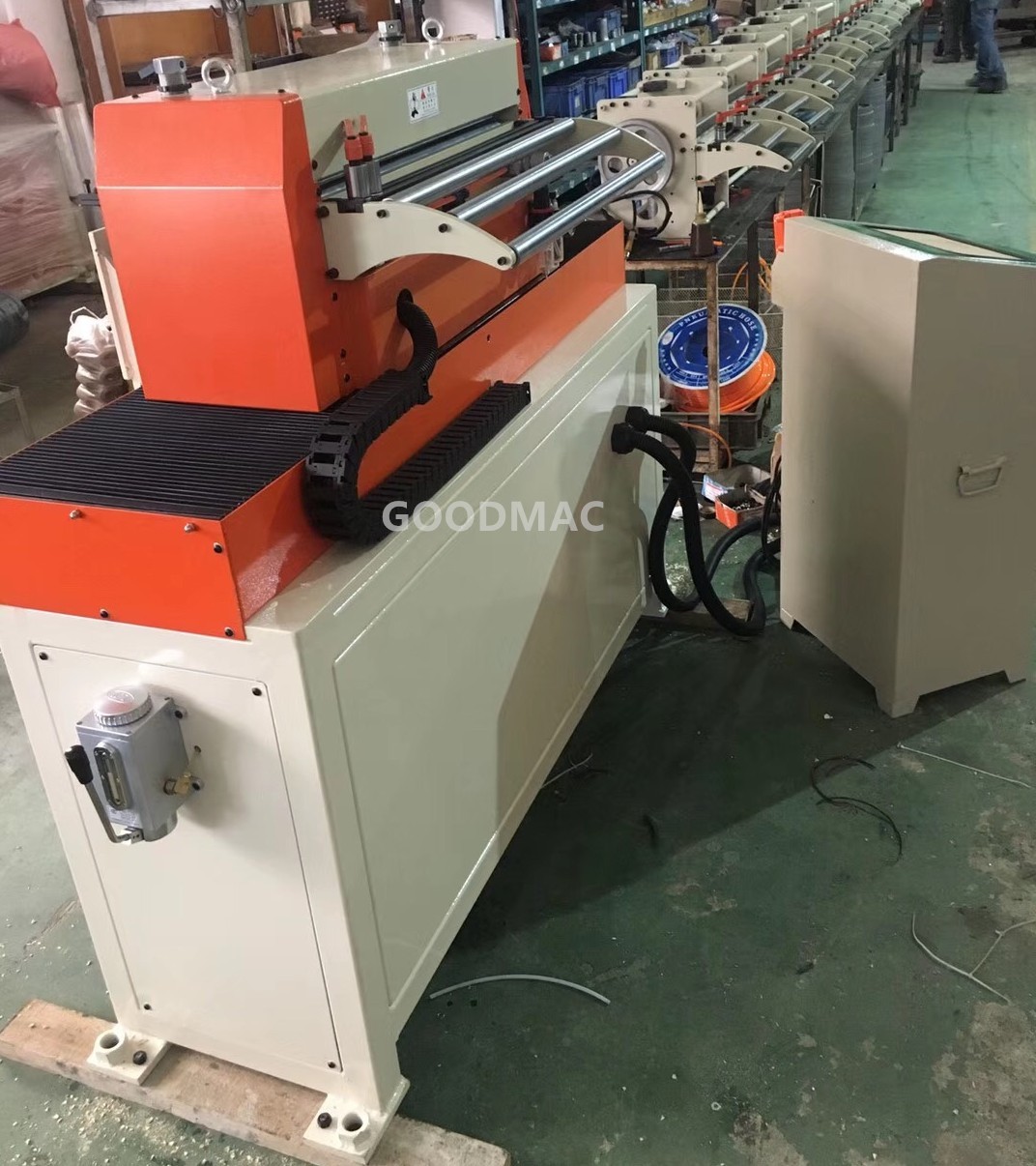

0.2-2mm Zigzag NC servo roll feeders, model NCF-200Z, 300Z, 400Z, 500Z, 600Z, 800Z, 1000Z
- Brand： GOODMAC
- Model： NCF-100Z, NCF-200Z, NCF-300Z, NCF-400Z, NCF-500Z, NCF-600Z, NCF-700Z, NCF-800Z, NCF-900Z, NCF-1000Z, NCF-1300Z, NCF-1600Z
- Function： feed metal sheet
- Feeding power： servo motors
- Advantage： zigzag feeding, to save material
- HMI (touch screen)： input feeding length numbers etc
- PLC ： MITSUBISHI
- Releasing material： by pneumatic cylinder
- Variable frequency speed control system： standard
- Easy to use： yes
- INQUIRY
Specification
| Model | NCF-100Z | NCF-200Z | NCF-300Z | NCF-400Z | NCF-500Z | NCF-600Z | NCF-800Z | NCF-1000Z | NCF-1300Z | NCF-1600Z |
| Metal sheet width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 800mm | 1000mm | 1300mm | 1600mm |
| Zigzag feeding distance | 50mm | 100mm | 150mm | 200mm | 250mm | 300mm | 400mm | 500mm | 650mm | 800mm |
| Metal sheet thickness | 0.2-2.2mm | |||||||||
| Feeding length per stroke | 0.1-9999.99mm | |||||||||
| Feeding accuracy | ±0.1mm | |||||||||
| Feeding speed | 0-20m/min | |||||||||
| Feeding roller | 2 pieces | |||||||||
| Releasing method | by pneumatic cylinder | |||||||||
| Front feeding | YASKAWA servo motor (JAPAN brand) | |||||||||
| Zigzag feeding | YASKAWA servo motor (JAPAN brand) | |||||||||
| PLC | MITSUBISHI (JAPAN brand) | |||||||||
| Human machine interface (HMI) | WEINVIEW (Taiwan brand) | |||||||||
| Other main components | other brands | |||||||||
| Electrical power | 380V, 3 Phase, 50HZ (or else) | |||||||||
