0.3-3.2mm, model GL

  • 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600
  • 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600
  • 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600
  • 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600
  • 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600
  • 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600
  • 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600
  • 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600
0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600 0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600

0.3-3.2mm decoiler and straightener 2 In 1, model GL-200, 300, 400, 500, 600

  • Brand： GOODMAC
  • Model： GL-200, GL-300, GL-400, GL-500, GL-600
  • Decoiler power： without motor motive
  • Coil car for coil： optional
  • Decoiler expanding method： manual expanading
  • Pressing arm for coil： optional
  • Coil retainer： standard
  • Straightening roller adjustment method： worm gear
  • Variable frequency speed control system： optional
  • Loop control： electronic touch sensor
  • INQUIRY

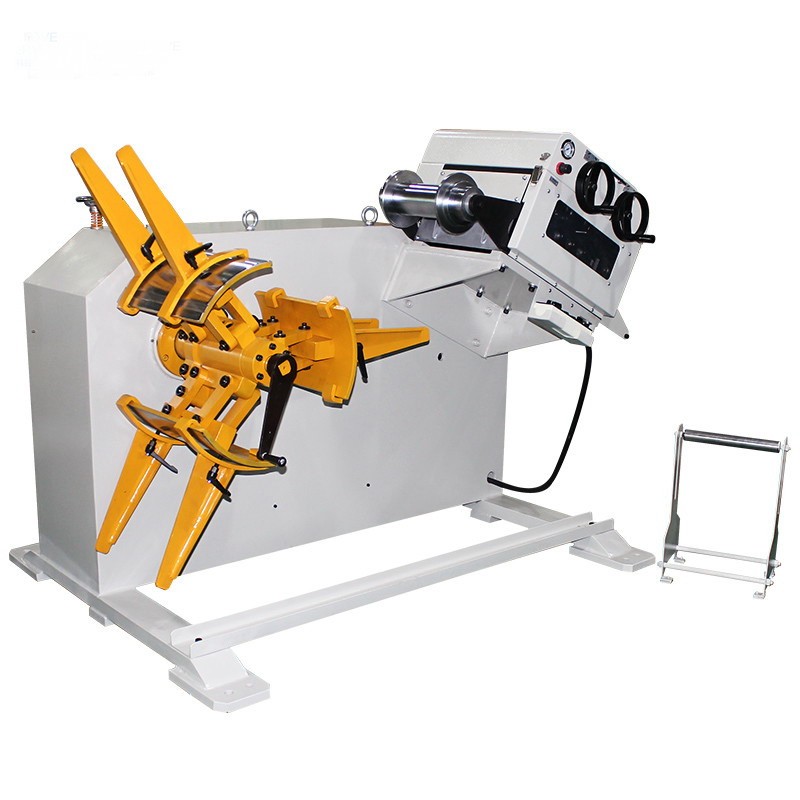

This series machine contains decoiler and straightener together, so as 2 in 1.
It can decoil sheet metal strip coil, then straighten it automatically, for automatic stamping & punching. It has perfect straightening performance.
It can be customized according to your special application requirement. Welcome to contact us for more details.

Specification

ModelGL-200GL-300GL-400GL-500GL-600
Metal sheet coil width200mm300mm400mm500mm600mm
Metal sheet thickness0.3-3.2mm
Coil inside diameter460-520mm
Coil outside diameter1200mm
Coil weight600KG1000KG1500KG2000KG2500KG
Mandrel expandingmanual
Pressing device for coiloptional
Straightening speed15m/min
Inverter for adjusting speedoptional
Straightener roller quantity7 pieces
Rollers pressure adjustingby worm gearing
Straightener motor1HP2HP2HP3HP3HP
Electrical power380V, 3 phase, 50HZ
