0.1-0.6mm, precise straighteners

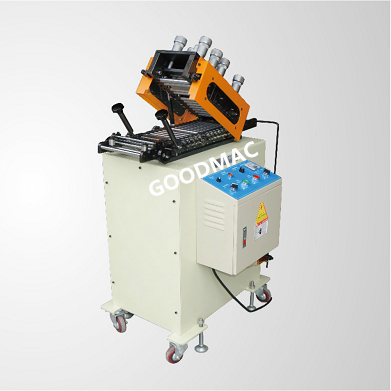

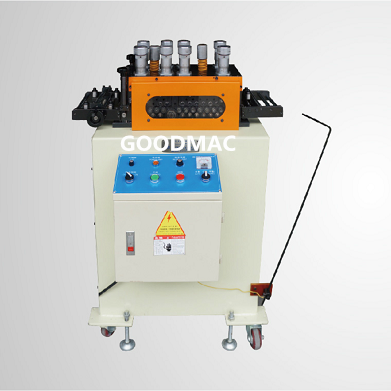

0.1-0.6mm high Precision Straighteners, Model SNL-200, 300, 400
- Brand： GOODMAC
- Model： SNL
- Function： straighten sheet metal strip
- Advantage： for thin material
- Drive mechanism： universal joint
- Straightening speed： 0-16m/min
- Variable frequency speed control system： standard
- Adjusting method： by hand wheel
- Easy to use： yes
- INQUIRY
This model SNL high precision straightener can straighten thin sheet metal strip automatically, for automatic stamping & punching, in order to produce stamping parts. It has very perfect straightening performance.
It can be customized according to your special application requirement.
Welcome to contact us for more details.
Specification
| Model | SNL-200 | SNL-300 | SNL-400 |
| Metal sheet width | 200mm | 300mm | 400mm |
| Metal sheet thickness | 0.1-0.6mm | ||
| Straightening roller diameter | Φ20mm | ||
| Straightening roller quantity | 5 pieces (upper 2, lower 3), +19 pieces (upper 9, lower 10) | ||
| Roller position adjustment | by hand wheel, 8 point adjusting | ||
| Roller tension device | standard | ||
| Roller transmission | universal joint (cardan joint) | ||
| Lubrication device | standard | ||
| Feeding speed | 0-16m/min | ||
| Inverter for adjusting speed | standard | ||
| Motor power | 1HP | ||
| Electrical power | 380V, 3 phase, 50HZ | ||
