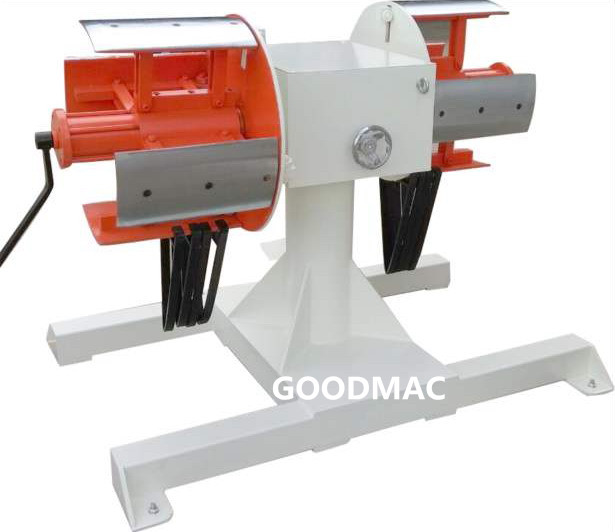

Double head decoilers, model MTD

  • Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600
  • Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600
  • Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600
  • Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600
  • Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600
  • Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600
  • Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600
Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600 Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600 Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600 Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600 Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600 Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600 Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600

Non-motorized double head decoilers, model MTD-200, 300, 400, 500, 600

  • Brand： GOODMAC
  • Model： MTD-200, MTD-300, MTD-400, MTD-500, MTD-600, MTD-700.
  • Function： decoil sheet metal strip coil
  • Advantage： two sides for loading coils
  • Coil car for loading coil： optional
  • Decoiler mandrel expanding method： manual rod or automatic hydraulic cylinder
  • Pneumatic pressing device： optional
  • Drive power： with or without motor
  • Decoiling speed： 16m/min
  • Variable frequency speed control system： optional
  • INQUIRY

This type model MTD decoiler can decoil applicable sheet metal strip coil easily.
It has two pieces of loading stations.
Decoiler can decoil applicable coil for press machine, shearing machine, roll forming machine, etc.
It can be customized according to your special application requirement. Welcome to contact us for more details.

Specification

ModelMTD-200MTD-300MTD-400MTD-500MTD-600MTD-700
Metal sheet coil width200mm300mm400mm500mm600mm700mm
Metal sheet thickness0.1-2mm
Coil inside diameter450-530mm
Coil outside diameter 1200mm
Metal sheet coil weight1500KGS2000KGS3000KGS4000KGS4000KGS4000KGS
Mandrel expandingmanual (hydraulic expanding is optional)
Decoiling speedMetal sheet l is pulled passively.
Motor motorizedoptional
Inverter for adjusting speedoptional
Arm pressing deviceoptional
Coil car for loading coiloptional
